Dualcom Technology are the NZ Distributor for French owned company ECO GREEN ENERGY. ECO GREEN ENERGY owns factories in China and produce panels out of Jiangsu with strict production methods to meet the high standards required in its European market. The 200 MW Factory has Full and Semi automated lines and exports to countries all over the world. Dualcom are the first NZ Distributor with panels designed to also support the growing RV / Caravan and Marine market.

Tested for SALT & MIST CORROSION level 6, in the most severe testing conditions, involving eight weeks of intensive cyclical, sequential days of corrosive salt spray and damp storage, to simulate the harsh marine environment.

Featuring

5BB Mono Cell Technology
Salt & Mist Corrosion Tested - Level 6
6061 Marine Grade Aluminium
High Shunt Resistance
Matched Cells
Equatoriac Grade Ethylene Vinyl Acetate (EVA)
IEC 61215, IEC61730, Fire Test MS-23, Hail Test passed by TUV-SUD

Quality and Safety

12-year warranty on product materials and processing technology
Genuine A Grade Solar Cells
Double Flash Production - Before / After Production
EL Test Reports Available
Power output warranty: 25 years: 80%, 10 years: 90%
ISO 9001:2008 (Quality Management System) certified factory
IEC61215,IEC61730 ,MCS CEC certified products

Specification

Peak Power (Pmax)	: 100.00W
Max Power Voltage (Vmp)	: 18.85V
Max Power Current (Imp)	: 5.31A
Open Circuit Voltage (Voc)	: 22.90V
Short Circuit Current (Isc)	: 5.81A
Max Systems Voltage (V)	: 1000V
Pmax Temperature Coefficient (W/°C)	: - 0.41%
Voc Temperature Coefficient (V/°C)	: - 0.31&
Isc Temperature Coefficient (A/°C)	: 0.06%
Nominal Operatings Cell Temp (NOCT)	: 45±2

Mechanical Characteristics

Cell Type	: 5 BusBar Mono-Crystalline 156x93.5
Cell Qty	: 36 CELL
Dimensions	: 920x670x30mm
Weight	: 7.3Kg
Front Glass	: 3.2mm High Transmission, Low Iron, Termpered Glass
Surface Load	: Max 60m/s (200Kg / Sq.m)
Junction Box	: IP65 Rated
Output Cables	: MC4, Length 900mm

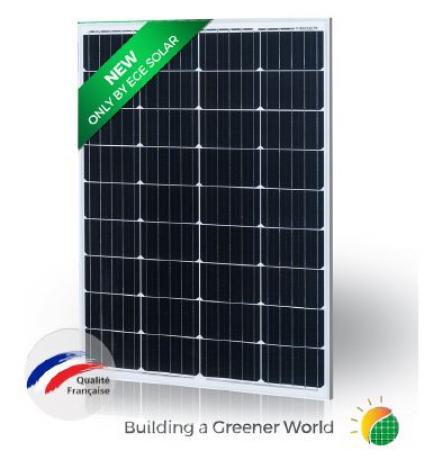

100W Premium EGE Series 5BB Mono PV Panel - NANO Self Cleaning - 18V – 920*670*30mm

100W Premium EGE Series 5BB Mono PV Panel - NANO Self Cleaning - 18V – 92067030mm
