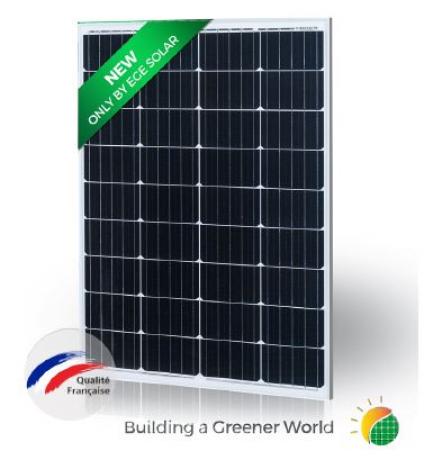

100W Premium EGE Series 5BB Mono PV Panel - NANO Self Cleaning - 18V – 920*670*30mm
100W Premium EGE Series 5BB Mono PV Panel - NANO Self Cleaning - 18V – 920*670*30mm
Couldn't load pickup availability
Dualcom Technology are the NZ Distributor for French owned company ECO GREEN ENERGY. ECO GREEN ENERGY owns factories in China and produce panels out of Jiangsu with strict production methods to meet the high standards required in its European market. The 200 MW Factory has Full and Semi automated lines and exports to countries all over the world. Dualcom are the first NZ Distributor with panels designed to also support the growing RV / Caravan and Marine market.
Tested for SALT & MIST CORROSION level 6, in the most severe testing conditions, involving eight weeks of intensive cyclical, sequential days of corrosive salt spray and damp storage, to simulate the harsh marine environment.
Featuring
- 5BB Mono Cell Technology
- Salt & Mist Corrosion Tested - Level 6
- 6061 Marine Grade Aluminium
- High Shunt Resistance
- Matched Cells
- Equatoriac Grade Ethylene Vinyl Acetate (EVA)
- IEC 61215, IEC61730, Fire Test MS-23, Hail Test passed by TUV-SUD
Quality and Safety
- 12-year warranty on product materials and processing technology
- Genuine A Grade Solar Cells
- Double Flash Production - Before / After Production
- EL Test Reports Available
- Power output warranty: 25 years: 80%, 10 years: 90%
- ISO 9001:2008 (Quality Management System) certified factory
- IEC61215,IEC61730 ,MCS CEC certified products
Specification
| Peak Power (Pmax) | : 100.00W |
| Max Power Voltage (Vmp) | : 18.85V |
| Max Power Current (Imp) | : 5.31A |
| Open Circuit Voltage (Voc) | : 22.90V |
| Short Circuit Current (Isc) | : 5.81A |
| Max Systems Voltage (V) | : 1000V |
| Pmax Temperature Coefficient (W/°C) | : - 0.41% |
| Voc Temperature Coefficient (V/°C) | : - 0.31& |
| Isc Temperature Coefficient (A/°C) | : 0.06% |
| Nominal Operatings Cell Temp (NOCT) | : 45±2 |
Mechanical Characteristics
| Cell Type | : 5 BusBar Mono-Crystalline 156x93.5 |
| Cell Qty | : 36 CELL |

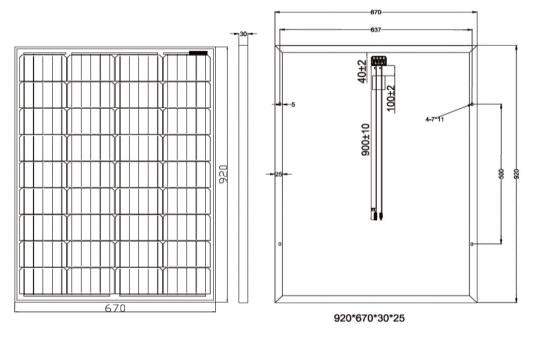

| Dimensions | : 920x670x30mm |
| Weight | : 7.3Kg |
| Front Glass | : 3.2mm High Transmission, Low Iron, Termpered Glass |
| Surface Load | : Max 60m/s (200Kg / Sq.m) |
| Junction Box | : IP65 Rated |
| Output Cables | : MC4, Length 900mm |
