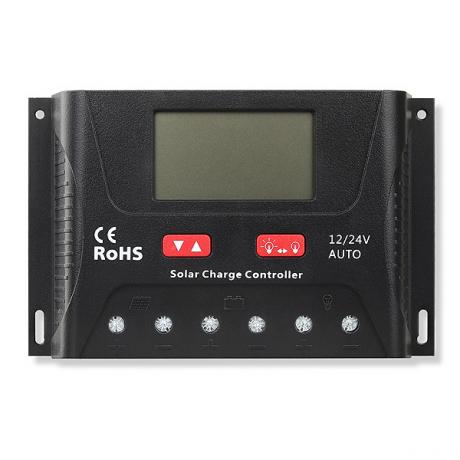

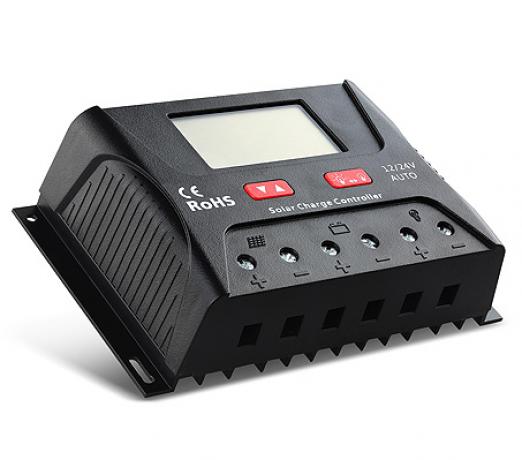

SRNE Solar Charge Controller 30 amp with A-V-D 12/
SRNE Solar Charge Controller 30 amp with A-V-D 12/
Regular price
$110.88 NZD
Regular price
Sale price
$110.88 NZD
Taxes included.
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
SRNE series Lithium compatible PWM charge controllers are the new standard in advanced PWM charge control. Three stage charging mode with various auto temperature and auto load control functions, for fast and effective charge control.
Large LCD display informs user about all operating modes with the aid of symbols. The state of charge is represented visually in the form of a tank display. Data such as voltage, current and state of charge can also be displayed digitally as figures on the display. In addition, the controller has an energy meter which can be reset by the user. These have automatic battery voltage detection, and adjustable voltage setting for Lithium.
Technical Specifications
| Operating Voltage | : 12V or (24V) (Automatic Detection) | |||
| Max Input Voltage of PV Panel | : < 55V | |||
| Stand by self consumption | : <13mA | |||
| Charge current | : 30A | |||
| Load current | : 30A | |||
| Over voltage protection | : 16V (12v) / 32V (24v) | |||
| Battery Type | | Flooded (FLD) | | Sealed (SLD) | | GEL (GEL) | | Lithium (Li) |
| Equaliszing Charge Voltage | | 14.8 | | 14.6 | | - | | - |
| Boost Charge Voltage | | 14.6 | | 14.4 | | 14.2 | | 14.4 |
| Float Charge Voltage | | 13.8 | | 13.8 | | 13.8 | | - |
| Display | : Large LCD | |||
| Over Discharge Recovery | : 12.5V (configurable) | |||
| Over Discharge Voltage | : 11.0V (configurable) | |||
| FITTING AND CONSTRUCTION | ||||
| USB Charge Port | : YES (right hand side) | |||
| IP Rating | : IP30 | |||
| Working temperature | : -25°C ~ +55°C | |||
| Dimensions | : 164 x 104 x 47mm | |||
| Weight | : 390g | |||
