 Available on request. Please use enquiry form on the contact us page, to order this product. Price May Differ from the one shown here.

Shingled PERC is a new breakthrough in solar cell technology.  This innovative technology for interconnecting the cell minimizes electrical losses from cell to cell which results in higher module efficiency.  This high power, high-density Shingled PERC module are very robust and suited to mobile vehicles including Caravan, RV and Boating. The busbar-free structure means only a small proportion of cells are not exposed to sunlight allowing for better performance when shaded.

Features :

- PERC Solar cells with shingle technology
- Reinforced frame with aluminium angle
- 35mm Frame with a support surface of 1.2mm thickness

Advantages :

- More Power : Reduced optical and electrical losses.  Shadowing also has less effect due to PERC Shingled Cell design.

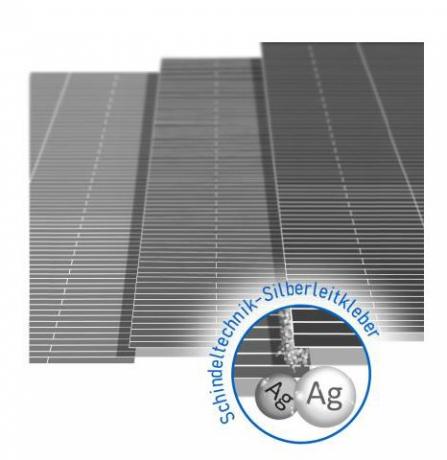

Seamless Soldering : Shingled Soldering is a new proprietary Module Encapsulation Technology, achieved using Silver Conductive Adhesive instead of BusBars.
Compact : High efficient cells means smaller modules especially when used in Caravan, RV and Marine applications.
- Reduced system cost : High component efficiency reduces floor space, BOS, transportation and operation costs at production level.
- Stability : Enhanced reliability and stability. Significantly reduces hot spot effect.
- Reliability : Avoids cell crack caused by traditional welding process; the components are flexible and compressible, suitable for a variety of harsh environments.
Performance 10 year product warranty on materials and workmanship, 25 years linear power output warranty.

Specification

Peak Power (Pmax)  : 195.00W
Max Power Voltage (Vmp)  : 21.76V
Max Power Current (Imp) : 9.04A
Open Circuit Voltage (Voc) : 31.34V
Short Circuit Current (Isc) : 7.95A
Module Efficiency : 19.75%
Max Systems Voltage (V) : 1000V
Pmax Temperature Coefficient (W/°C)  : - 0.41%
Voc Temperature Coefficient (V/°C) : - 0.31&
Isc Temperature Coefficient (A/°C) : 0.05%
Nominal Operatings Cell Temp (NOCT)  : 48±2 C
Operating Temp : -40 to +85C


Mechanical Characteristics

Cell Type : PERC Shingled MONO
Cell Qty : 188 CELL
Dimensions  : 1473x670x35mm
Weight : 12Kg
Front Glass : 3.2mm High Transmission, Low Iron, Termpered Glass
Surface Load : 5400Pa
Junction Box  : IP65 Rated
Output Cables  : MC4, 2.5mm2 900mm
